If you manage a packaging plant and are looking for a machine to manufacture soft-handle bags, you likely face two main options: servo-driven systems and pneumatic systems. Many buyers believe that pneumatic machines are more cost-effective and therefore the better choice. However, after selling numerous CY-800ZD units over the years, we have found that servo technology actually delivers superior performance for soft-handle bag production. Let me explain why.
When manufacturing soft-handle bags, the left and right handles must be perfectly aligned. If one handle is off by even 1 mm relative to the other, the bag loses its visual appeal, and customers may complain.
Pneumatic systems use compressed air to actuate components. The major issue lies in the compressibility of air: with every cylinder movement, the stopping position is not exactly the same. This effect becomes more pronounced as the machine's operating speed increases. The result? You end up with a large number of bags with misaligned handles that must be discarded.

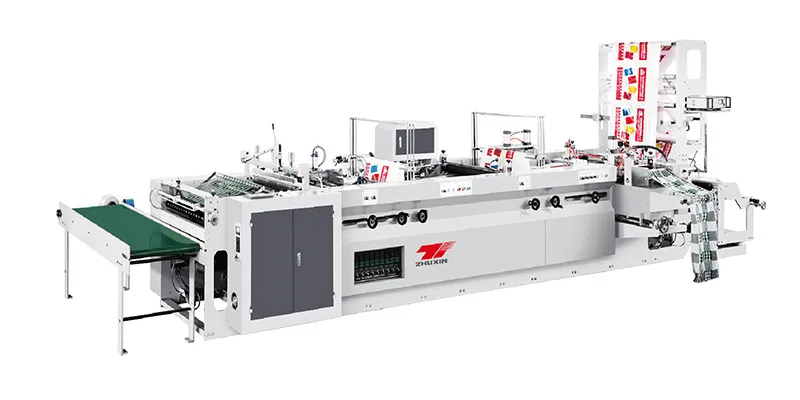

Servo motors operate differently. Thanks to a closed-loop control system, the machine constantly knows the exact position of every component. Positioning precision can reach 0.05 mm—far superior to that of conventional pneumatic machines. On the CY-800ZD, this ensures that every handle is attached in the exact same spot, regardless of production volume, without requiring repeated adjustments by operators.
I can guess what you’re thinking: a servo-driven machine requires a higher initial investment. That is correct. However, one should not focus solely on the purchase price; subsequent operating costs must also be considered.
Pneumatic machines require an air compressor, and generating compressed air consumes a significant amount of electricity. Industry data shows that for every seven units of electricity consumed, only one is actually converted into useful work; the rest is simply lost. Furthermore, air lines often develop micro-leaks that are invisible to the naked eye but drive up daily costs.
In contrast, servo-driven machines consume electricity only when in motion. When the machine is idle, energy consumption is virtually zero. Our customers report that the servo-driven model cuts electricity bills by 25–30% compared to a pneumatic machine of equivalent size. Additionally, fewer defective bags mean less plastic film waste. Over the course of a year, the total savings are substantial.

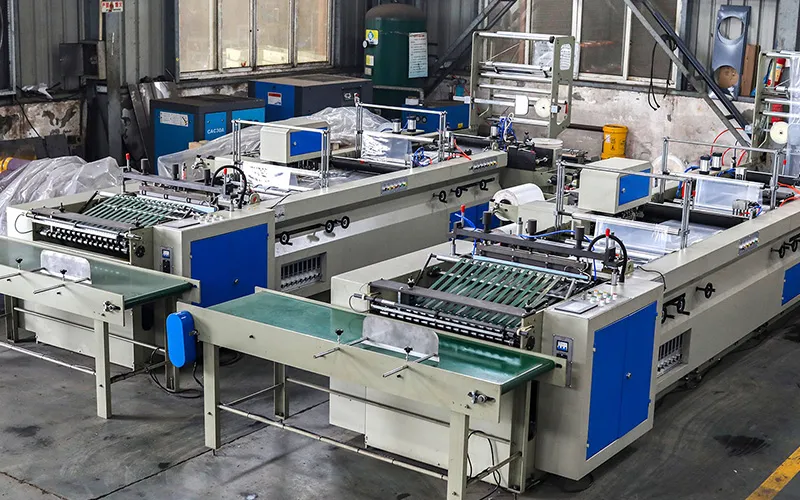

Many factories today handle small orders, each requiring a different bag size. With a pneumatic machine, changing sizes is a tedious process: operators have to adjust numerous screws, tweak air pressure, and so on—it usually takes one to two hours to get everything set up correctly.
With a servo-driven machine, you simply enter the new values on the touchscreen, and that’s it. The machine adjusts automatically. The CY-800ZD model even allows you to save different settings for different products. A new operator can learn to use it in just half a day. This is a major advantage for factories managing a wide variety of orders.
Some customers ask whether the CY-800ZD is fully servo-driven. The answer is no: it relies on a hybrid design. We use servo motors only for critical elements—film drive and positioning control—because these steps require maximum precision. Other, simpler movements remain pneumatic, which helps keep the price reasonable.
We believe this offers an excellent balance. You benefit from servo-driven precision for handle positioning without paying for a fully servo-controlled system you do not actually need. The machine also retains a pneumatic structure that most workshops already know how to maintain and repair.
Servo technology is not always the ideal choice for every machine. However, for soft-handle bags, precision is paramount: an error of just a few millimeters is enough to give the bag a unprofessional appearance.
The CY-800ZD incorporates servo motor technology where it is most beneficial. While the initial investment is slightly higher, you gain in quality, reduce waste, and simplify operation. For factories committed to producing consistently high-quality products, this additional investment is a wise choice.
Zhejiang Zhuxin Machinery Co., Ltd. has been specializing in blown film machine and plastic packaging solutions for 37 years. With 6,000+ customers, 95% self-developed core components, and 3,200 sets of process parameters accumulated since 1989, Zhuxin delivers end-to-end plastic packaging solutions including film blowing machines, bag making machines, flexographic printing machines, and paper bag machinery.
