Model: ZXFD-290-330-460

Automatic Roll To Square Bottom Paper Bag Making Machine

ZXFD-290/330/460 Automatic Roll To Square Bottom Paper Bag Making Machine:

ZXFD-290/330/460 type adjustable roll to square bottom paper bag making machine, has the advantages of high speed, high production efficiency and adjustment range. It is designed to manufacture square bottom paper bags from paper roll in blank or printed, and can complete side gluing, tube forming, cutting, bottom impressing, bottom gluing, bottom forming and final product output within one time. Controlled by PLC system, equipped with touch screen and servo motor for bag length control, this machine can produce a variety of specifications paper bags. It is an ideal equipment for making paper bag for foodstuff bag or shopping bag.

Bag-making width:220-460mm
Bag-making length:260-533mm
Bag-making speed:180pcs/min
pro-in-sign-2.png pro-in-sign-2-1.png Inquiry Now Compare
Specification
{($vo3.Caption)}
Coffee Paper Bags
{($vo3.Caption)}
Food paper bag
{($vo3.Caption)}
Gift Paper Bags
{($vo3.Caption)}
Luxury Paper Bags
{($vo3.Caption)}
Shopping Paper Bags
Parameters
Model ZXFD-290 ZXFD-330 ZXFD-460
Bag Length 260-533mm 260-533mm 260-533mm
Bag Width 120-290mm 140-330mm 220-460mm
Bottom Size 60-180mm 60-180mm 60-180mm
Paper Thickness 60-150gsm 60-150gsm 60-150gsm
Maximum Roll Width 320-900mm 320-900mm 600-1300mm
Max Paper Roll Diameter 1300mm 1300mm 1300mm
Material Core Diameter 76mm 76mm 76mm
Max. Production Speed 200pcs/min 200pcs/min 180pcs/min
Total Power 12kw 12kw 15kw
Machine Weight 8500kg 9000kg 10000kg
Machine Size (LxWxH) 9200x2500x1800mm 9200x2600x1800mm 9200x3000x1800mm
Product Features

1.Using servo motors and color trackers to accurately track printed materials



2.Motion controller, integrated with optical fiber, achieves high-speed and high-precision motion control, process detection



3.Adopting touch screen display, the operation functions are clear at a glance, and it has a good human-machine interface

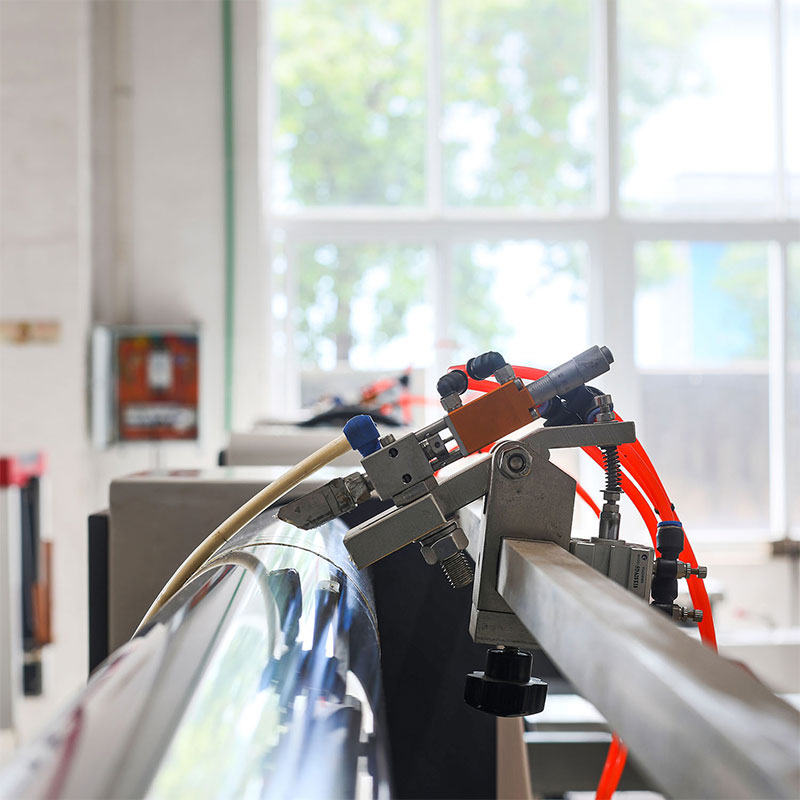

4.Adopting a cold spray adhesive system, the amount of adhesive is automatically adjusted according to the mechanical operating speed



5.This machine is equipped with a paper blockage detector, which will automatically sound an alarm to prevent damage to the machine due to paper blockage



6.Using hydraulic lifting for material handing, and automatic tension control system for unwinding

FAQ
FAQ
- +
How is the after-sales service? How long does the machine warranty last?

Once you purchase our machine, we guarantee to provide comprehensive lifelong after-sales service, including repair, technical support, training, and consultation. Our after-sales team will provide you with thoughtful service and help you solve any problems or difficulties encountered in using machine company products. All machines we sell come with a 12-month warranty.

- +
What technical support does your company provide?

We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.

- +
How to purchase products from your company?

You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.

- +
Do you need an agent in your factory?

We need to hire agents, please feel free to inquire for more details.

- +
What is your delivery time?

Usually delivered within 30 days. But it depends on the order and machine model.

- +
How long can your machine work continuously?

Our machines can work 24 hours a day without interruption, which not only increases production but also saves energy.

Product Video
Related Products

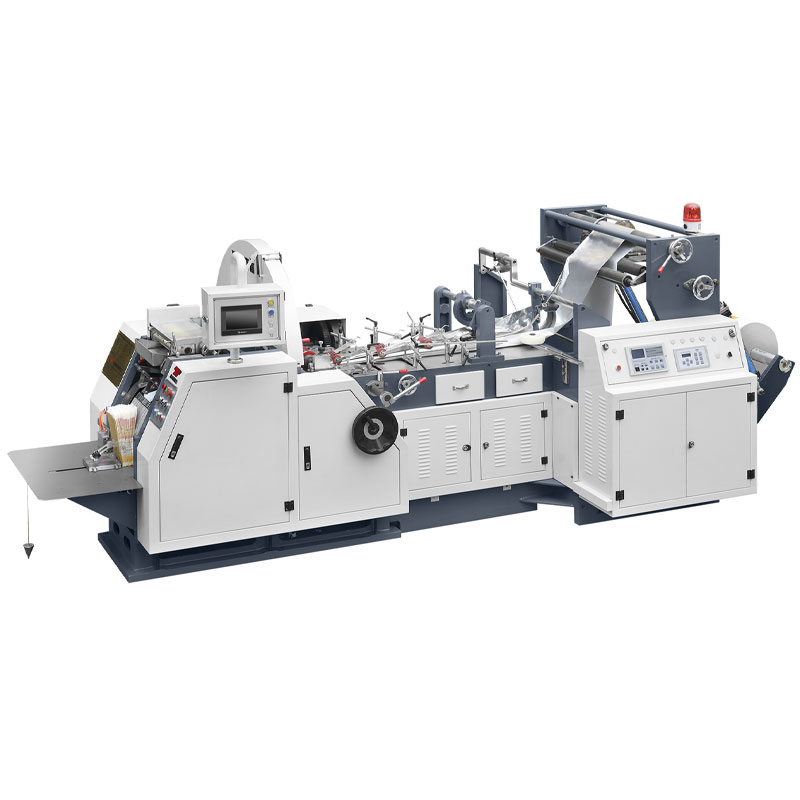

High Speed Food Paper Bag Making Machine
