6 colors Flexo High Speed Printing Machine

Model: YT-S Series Printer

6 Colors Flexo High Speed Printing Machine

Name: 6 Colors Flexo High Speed Printing Machine
Brand: Zhuxin
SKU: 00017
Rating: 4.1 (59 reviews)

Six Color Overlapping Type Synchronous Belt High Speed Printing Machine:

Six color overlapping type synchronous belt high speed printing machine is a device that combines synchronous belt drive technology and high-speed printing technology. It uses a synchronous belt drive system during the printing process, which ensures stability and accuracy through precise tooth design and high-precision transmission. The non sliding synchronous transmission characteristics of synchronous belts enable the printing process to maintain a high degree of continuity and stability, thereby ensuring the uniformity and color consistency of printed materials.

Max.printing width:960mm

Printing speed:120m/min

Plate thickness:1.14-3.94

Inquiry Now Compare

Specification

Paper Bag Printing

Plastic Bag Printing

Parameters

Model	YT-600	YT-800	YT-1000
Max.width of substrate	600mm	800mm	1000mm
Max.printing width	560mm	760mm	960mm
Printing materials	PE PP Film / Paper / Woven bag / Non-woven
Printing speed	120m/min	120m/min	120m/min
Plate thickness	1.14-3.94	1.14-3.94	1.14-3.94
Weight of machine	5000	5500	6000
Machine size (L×W×H)	6.8×1.8×2.9m	6.8×2×2.9m	6.8×2×2.9m

Product Features

1. Easy to operate and convenient, accurate color matching, long service life

2. Equipped with a motor, variable frequency speed regulation, energy-saving, and minimal operational fluctuations

3. The ink motor stops automatically when the plate is dropped, and the ink device starts automatically when the plate is started

4. Adopting synchronous belt transmission, the printing size is accurate,

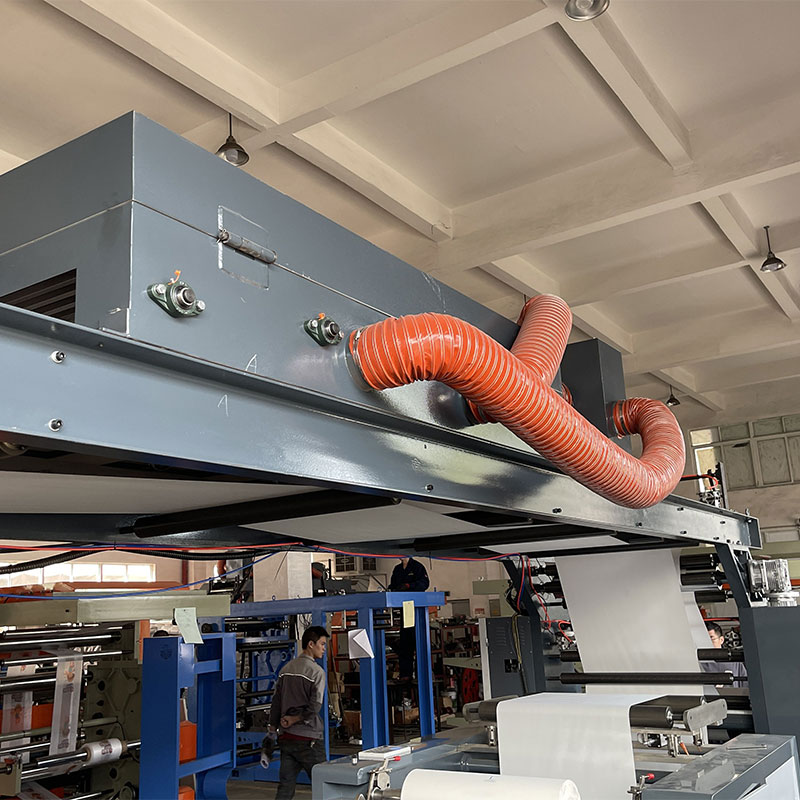

5. There are two sets of devices for blowing and heating, among which the heating is controlled by a central constant temperature control system and grouped

6. The low roller is processed with special steel and treated with special technology, and electroplated with a 10 wire thick hard chromium protective layer

7. aluminum alloy guide wheels undergo hard oxidation, dynamic balancing, and static balancing treatment

8. is equipped with a cold air shaping bellows, which can effectively prevent defects such as ink adhesion after printing

9. The printed image is clear and has a strong sense of hierarchy

FAQ

- +

How is the after-sales service? How long does the machine warranty last?

Once you purchase our machine, we guarantee to provide comprehensive lifelong after-sales service, including repair, technical support, training, and consultation. Our after-sales team will provide you with thoughtful service and help you solve any problems or difficulties encountered in using machine company products. All machines we sell come with a 12-month warranty.

- +

What technical support does your company provide?

We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.

- +

How to purchase products from your company?

You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.

- +

Do you need an agent in your factory?

We need to hire agents, please feel free to inquire for more details.

- +

What is your delivery time?

Usually delivered within 30 days. But it depends on the order and machine model.

- +

How long can your machine work continuously?

Our machines can work 24 hours a day without interruption, which not only increases production but also saves energy.
