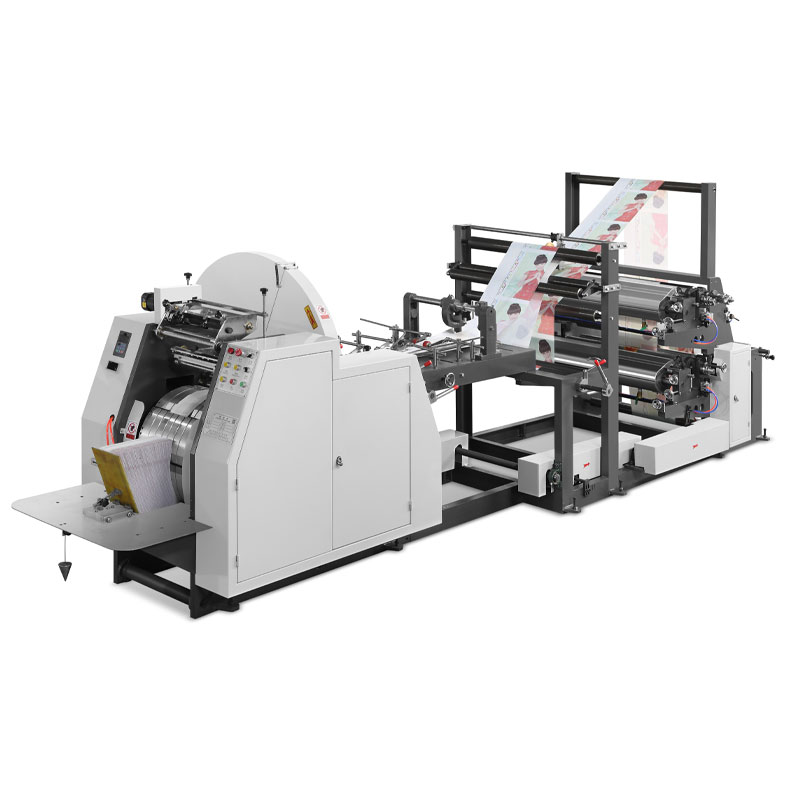

JYS-400/650/850 Mechanical Paper Bag Making Machine With Printing Online:
JYS-400/650/850 mechanical paper bag making machine with printing online connects the printing and bag making processes together, reducing the intermediate process of printing and rewinding the roll paper before making bags, improving production efficiency, and reducing labor costs. Generally, two-color, four-color, and six color printing can be connected.
Inquiry Now
Compare
| Model | JYS400 | JYS650 | JYS850 |
| Bag Weight | 40-80g/m² | 40-80g/m² | 40-80g/m² |
| Tube Length | 160-450mm | 200-650mm | 200-850mm |
| Bag Width | 80-250mm | 80-300mm | 80-350mm |
| Speed | 100-400bags/min | 100-400bags/min | 100-400bags/min |
| Weight | 2200kg | 2400kg | 2600kg |
| Max Paper Roll Width | 800mm | 900mm | 1000mm |
| Power | 4kw | 4kw | 4kw |
| Insert Size | 20-120mm | 20-120mm | 20-120mm |
| Machine Size(L×W×H) | 6280x1500x1800mm | 6300x1600x1900mm | 6500x1700x1900mm |
| Model | Model | YT-800 | YT-1000 | YT-1100 |
| Max Width Substrate | Max Width Substrate | 800mm | 1000mm | 1100mm |
| Max Printing Width | Max Printing Width | 760mm | 960mm | 1060mm |
| Range Of Printing Length | Range Of Printing Length | 228-1000mm | 228-1000mm | 228-1000mm |
| Printing Speed | Printing Speed | 5-100m/min | 5-100m/min | 5-100m/min |
| Register Precision | Register Precision | ≤±0.20mm | ≤±0.20mm | ≤±0.20mm |
| Plate Thickness | Plate Thickness | 2.28mm | 2.28mm | 2.28mm |
| Machine Size(LxWxH) | Machine Size(LxWxH) | 2000x2000x2300mm | 2000x2200x2300mm | 2000x2400x2300mm |
| Remak: Two colors, Four colors, Six colors | ||||
1. Suitable for various types of paper weighing 40-80 grams
2. Adjust the bag length through the human-machine interface
3. The servo system PLC controls any length of the bag within a certain range
4. Accurate color code tracking system
5. Use a toothed knife to break it
6. Ink circulation closed scraper for ink scraping.
7. The ink transfer adopts ceramic mesh rollers, which have high dot reproduction rate during high-speed operation, clear layers in screen printing.
Once you purchase our machine, we guarantee to provide comprehensive lifelong after-sales service, including repair, technical support, training, and consultation. Our after-sales team will provide you with thoughtful service and help you solve any problems or difficulties encountered in using machine company products. All machines we sell come with a 12-month warranty.
We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.
You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.
We need to hire agents, please feel free to inquire for more details.
Usually delivered within 30 days. But it depends on the order and machine model.
Our machines can work 24 hours a day without interruption, which not only increases production but also saves energy.
