Mono LDPE/HDPE 1500/2000 Film Blowing Machine:
This machine can produce ground shack and package film of LDPE, HDPE, LLDPE. The screw and barrel of Extruder are made of high quality alloy steel, nitrided and manufactured by precision machining. They are provided with very hard surface to resist corrosion and accurately. It is adopted surface friction, double winder, and automatic meter counter, which is easy to operate.
| Model | MONO-75 | MONO-100 | |
| Suitable material | HDPE LDPE LLDPE | HDPE LDPE LLDPE | |
| Film width | 700-1500mm | 1200-2000mm | |
| Flim thickness | 0.03-0.20mm | 0.03-0.20mm | |
| Max. Extrusion output | HD | 100kg/hr | 150kg/hr |
| LD | 150kg/hr | 200kg/kr | |
| Screw diameter | φ75 | φ100 | |
| Screw l/d length | 32：1 | 32：1 | |
| Die size | HD | φ150 | φ200 |
| LD | φ350 | φ500 | |
| Air blower | 7.5kw | 11kw | |
| Roller width | 1600mm | 2100mm | |
| Take-up motor | 1.5kw | 2.2kw | |
| Winding motor | 25N.m | 25N.m | |
| Outline dimension(L×W×H) | 6×3×7.5m | 7.1×3.5×9m | |
High production efficiency

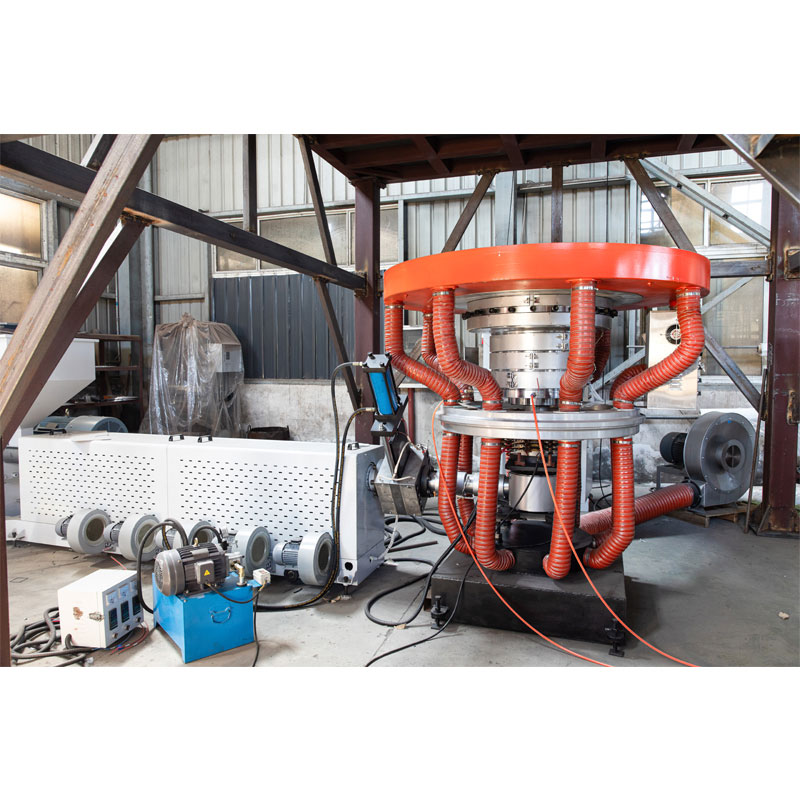

The mono ldpe/hdpe 1500/2000 film blowing machine for plastic film greenhouses adopts advanced production technology and equipment, which can efficiently produce high-quality films. The mold head can rotate 360 degrees, making the blown plastic film more uniform, with good smoothness and high production efficiency.
Durable materials
The material barrel and screw of the blown film machine are made of high-quality alloy steel, which has undergone nitriding treatment and precision processing, with high hardness, strong corrosion resistance, and durability. The mold head is plated with hard chromium, and the structure is spiral core shaft type, with uniform and smooth discharge. The air cooling device structure is labyrinth type, with uniform air flow, automatic temperature control, and automatic heating.
Easy to operate

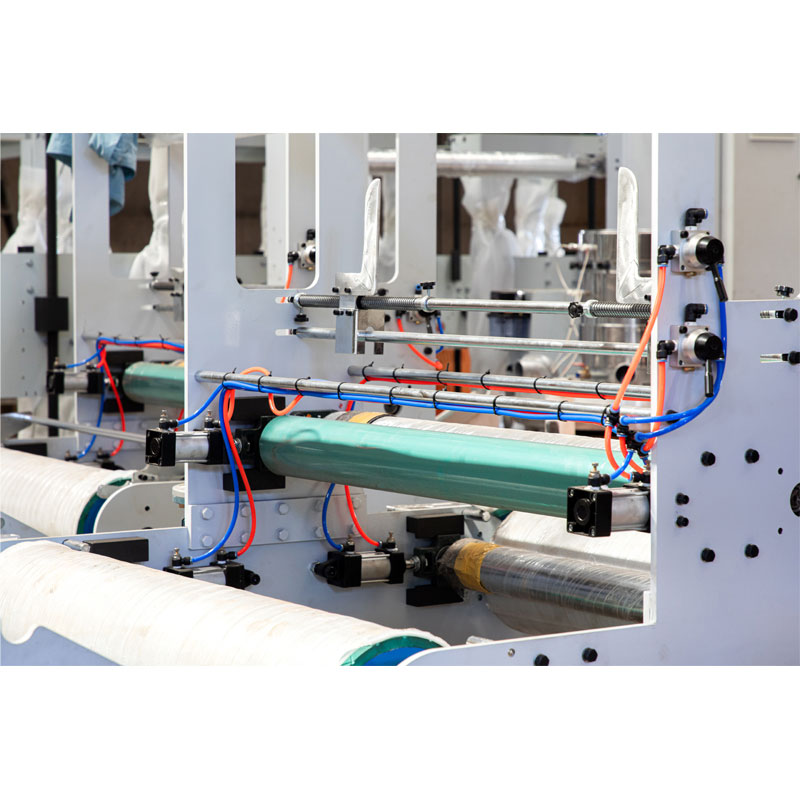

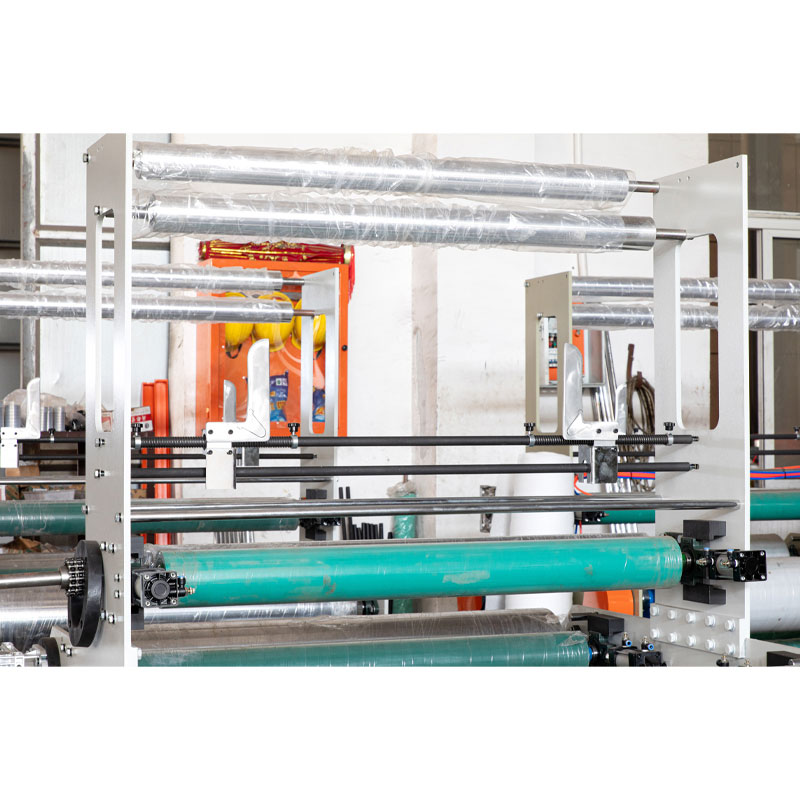

The winding device of the mono ldpe/hdpe 1500/2000 film blowing machine adopts pressure friction double winding, and is adjusted by a torque motor. The winding is smooth and easy to change.
Wide applicability
The mono ldpe/hdpe 1500/2000 film blowing machine is suitable for blowing high-density polyethylene (HDPE), low-density polyethylene (LDPE), and linear low-density polyethylene (LLDPE) plastic films, widely used in plastic films, greenhouse films, and packaging films
Once you purchase our machine, we guarantee to provide comprehensive lifelong after-sales service, including repair, technical support, training, and consultation. Our after-sales team will provide you with thoughtful service and help you solve any problems or difficulties encountered in using machine company products. All machines we sell come with a 12-month warranty.
We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.
You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.
We need to hire agents, please feel free to inquire for more details.
Usually delivered within 30 days. But it depends on the order and machine model.
Our machines can work 24 hours a day without interruption, which not only increases production but also saves energy.
